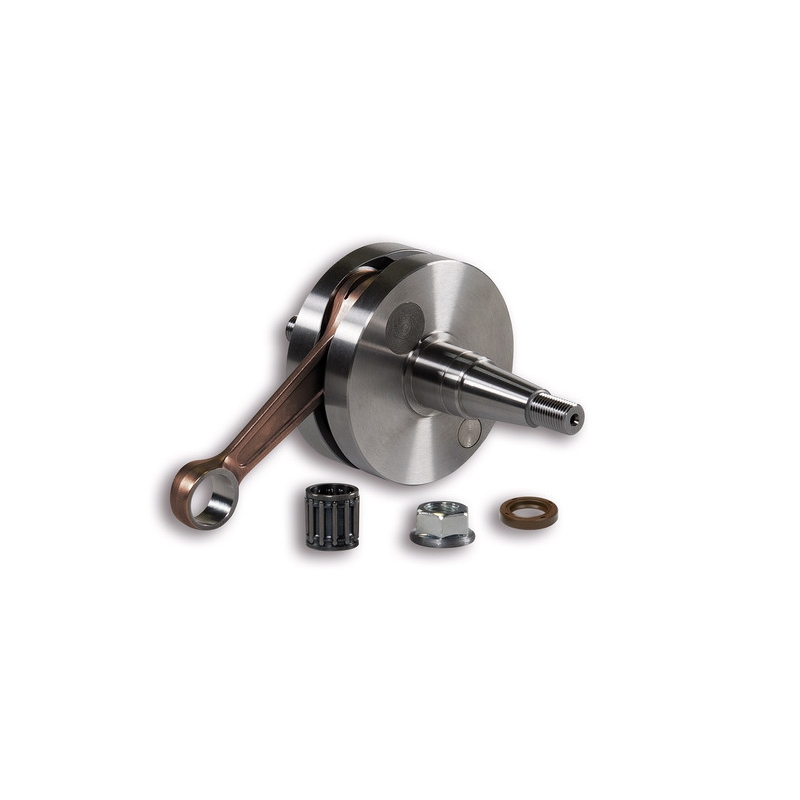

Cigüeñal MALOSSI bulón ø15 mm - carrera 51 mm

Piñón trasero sólido MALOSSI 5316528 Para Vespa PK 125 ETS/N/XL/XL2 También compatible con Vespa 125/PV/ET3/PK80-125 S/PK125 Mostrar todos los modelos de vehículos compatibles Diafragma Carrera: 51.0 mm Biela: 97.0 mm Biela deportiva Rodamiento del bulón del pistón: 15x19x20 mm KB Ø 15 mm Cono 22/25 mm Ø asiento de retenes del lado del dinamo: 22 mm Ø asiento de rodamiento del lado del dinamo: 25 mm Perfectamente equilibrado

STRENGTH AND DURABILITY MALOSSI CRANKSHAFTS FOR VESPA

The Vespa crankshaft is one of the most delicate and fundamental components of this type of power unit, as it has to control both the movements of the connecting rod and the piston, as well as regulate the intake using the timing mechanism.

The Malossi technical department has paid particular attention to these two aspects, creating two versions of crankshafts and developing new solutions of high technical value, starting with the selection of the materials, which, as always, are of the highest quality.</p

All Malossi crankshafts for Vespa are made of hardened, vacuum-melted steel of aeronautical quality, a material that is highly resistant to scratches and is guaranteed by the certifications required by strict Malossi specifications The connecting rod with a ‘viper head’ has a sophisticated design to absorb maximum weight and guarantee the required strength.</p

Not even the smallest detail has been overlooked. Malossi engineers have in fact been able to significantly increase resistance by using a finer thread on the axle on the drive side of the crankshafts The position of the spanner has also been revised in terms of both size and shape to no longer damage the thread and to contribute to the resistance with a modern solution. The crankshafts are fitted with special nuts that are much more resistant in order to benefit from the highest resistance that the densest thread can offer.

DIFFERENT VERSIONS

Crankshafts are available with different lengths of connecting rod for Vespas with a ‘small frame’, on which the shaft is installed with a full collar.

The shaft for engines with a rotary valve intake has standard dimensions for the length and length of the connecting rod.

SHAFT WITH FULL COLLAR

The Malossi shaft with full collar is designed solely for Vespa engines that have been modified to use an intake system with a reed valve instead of the original rotary valve. These engines represent the new limit for Vespa enthusiasts.

Just like for the version with a rotary valve, the optimum balance is ensured by tungsten inserts. In addition, the back of the drive side has specially developed bevels to facilitate the intake of fresh gases into the lower housing.</p

The circular ground structure is the area that benefits most from this new shaft and housing configuration, as it receives the highest possible amount of pressure at all times.</p

Products intended solely for competition at the locations designated for this purpose and in accordance with the provisions of the relevant sports authorities. We do not accept any liability for improper use.
