Piloto trasero SHIN YO

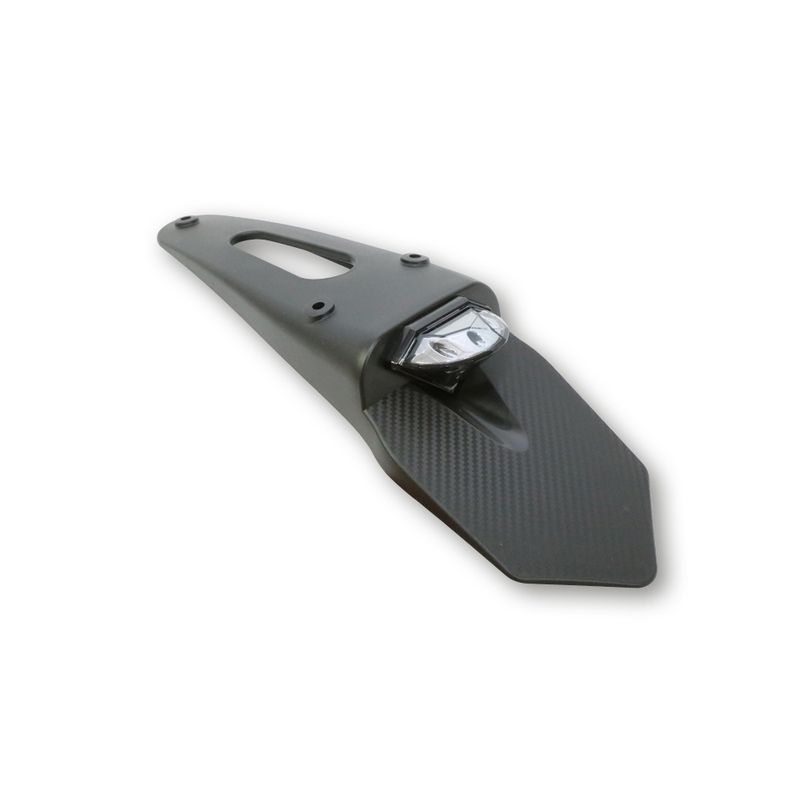

SHIN YO LED taillight with rear plastic
Diamond taillight with tinted glass, rear plastic and splash guard. Suitable for universal mounting using black plastic at the rear of the vehicle, E-tested.

Dimensions rear plastic
Width: 95 mm
Length (top to taillight): 200 mm

Dimensions splash guard
Width: 110 mm
Length: 130 mm
Distance of the three mounting holes: 65 mm to the two parallel holes at the bottom and from there 145 mm each to the upper hole.

Dimensions taillight
Width: 65 mm
Height: 45 mm
Depth: 38 mm

Connections:
Black cable = Ground (-)
Red cable= Stoplight (+)
Yellow cable = Taillight (+)

Scope of supply:
1 piece

Note: Without license plate light
