Kit cadena JT/JT 520Z3 17/41 super-reforzado - corona ultraligero

Chain set consisting of:

Standard sprocket

Standard chain wheel

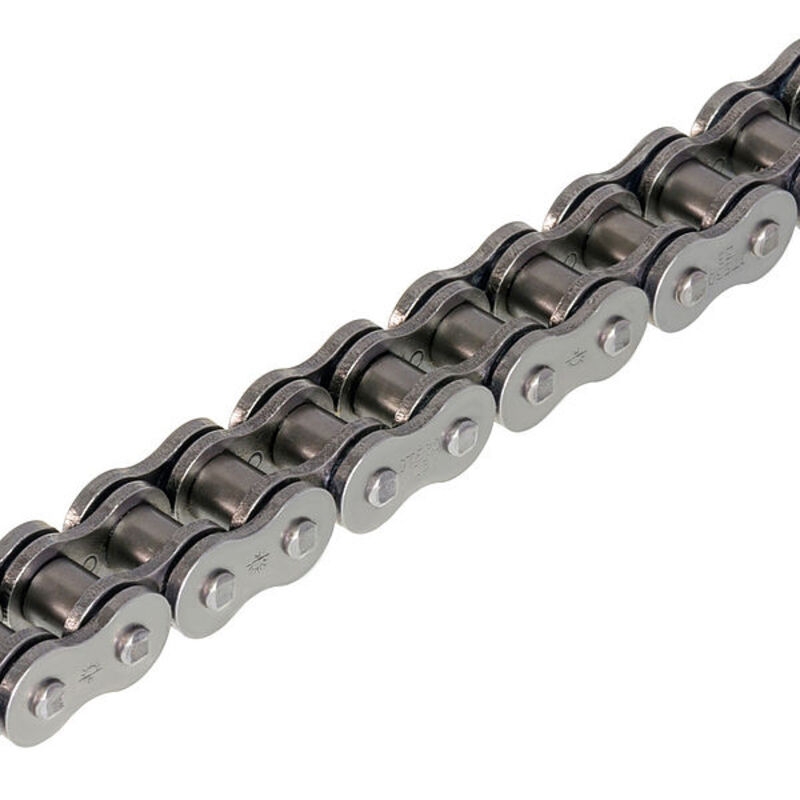

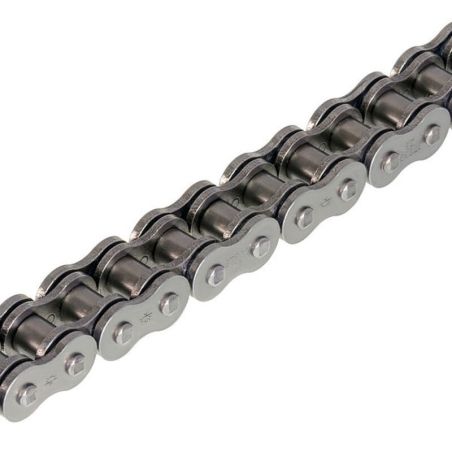

Chain JT 520Z3

Discover the JT 520Z3 motorbike chain – high performance for the most demanding requirements.

The JT 520Z3 motorbike chain has been developed to offer exceptional reliability and top performance. Whether on or off-road, this chain can withstand the harshest conditions and guarantees perfect power transmission. It is the first choice for riders looking for uncompromising quality.

Technical highlights of the JT 520Z3:

• Extremely high tensile strength: With an impressive tensile strength of 4,240 kg (41.6 kN) , the 520Z3 can handle even the toughest loads.
• Rugged design: Made of high-quality alloys for maximum durability and stability.
• Solid bushings: Reduce wear and tear for a longer service life.
• X-Ring seal: Advanced sealing technology minimises friction and protects against dirt and dust.
• Efficient performance: Optimal weight-strength ratio for smooth power transmission.

Ideal for the following motorcycles:

• Road and touring bikes: Suitable for bikes from 1000 cc that require maximum power and reliability.
• Sportbikes: Perfect for high-performance bikes and extreme speeds.

Technical data for the JT 520Z3 motorbike chain:

• Chain type: 520Z3
• diameter of rollers: 10.32 mm
• length of pins (inner): 21.40 mm
• thickness of plates (inner): 2.2 mm
• Plate thickness (outside): 2.4 mm
• Weight per 100 links: 1.87 kg
• Tensile strength (max.): 4,240 kg (41.6 kN)
• Riveted pins: 4
• Solid bush insert: Yes
• Seal: X-ring
• Available connection type: RL (riveted)

Why JT 520Z3?

For years, JT chains have stood for the highest quality and precision. With the 520Z3, you get a product that has been specially developed for high-performance machines. Whether you are a racing driver or a long-distance driver, this chain guarantees optimal performance and reliability.

Rely on JT – for uncompromising reliability.

Get the JT 520Z3 now and experience the perfect combination of technology and performance.
