HIGHSIDER pro 5 3/4 Inch Type 12 LED Headlight Insert With DRL

Inserto de Faro LED HIGHSIDER TYP 12 con DRL, 5 3/4 pulgadas.

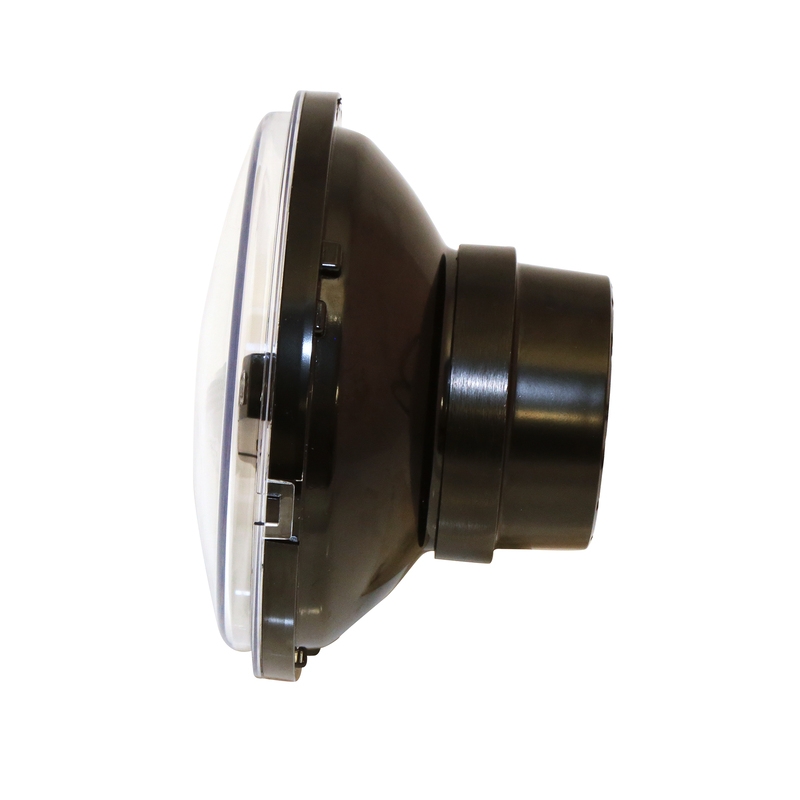

HIGHSIDER TYPE 12 LED main headlight insert, round with chrome-plated reflector and black cover, 5 3/4 inch, E-approved
High beam, low beam, parking light and daytime running light function.

Dimensions:
Ø A = 145 mm
Ø GA = 133 mm
Ø I = 129 mm
T = 70 mm
R = 10 mm
Weight: 650 g

Connections:
(3 pin connector)
Red = low beam (+)
White = high beam (+)
Black = ground (-)
Blue = TFL (+)
Brown = position light (+)
Cable length: 300 mm

Scope of delivery:
1 x LED headlight insert
1 x connector housing
