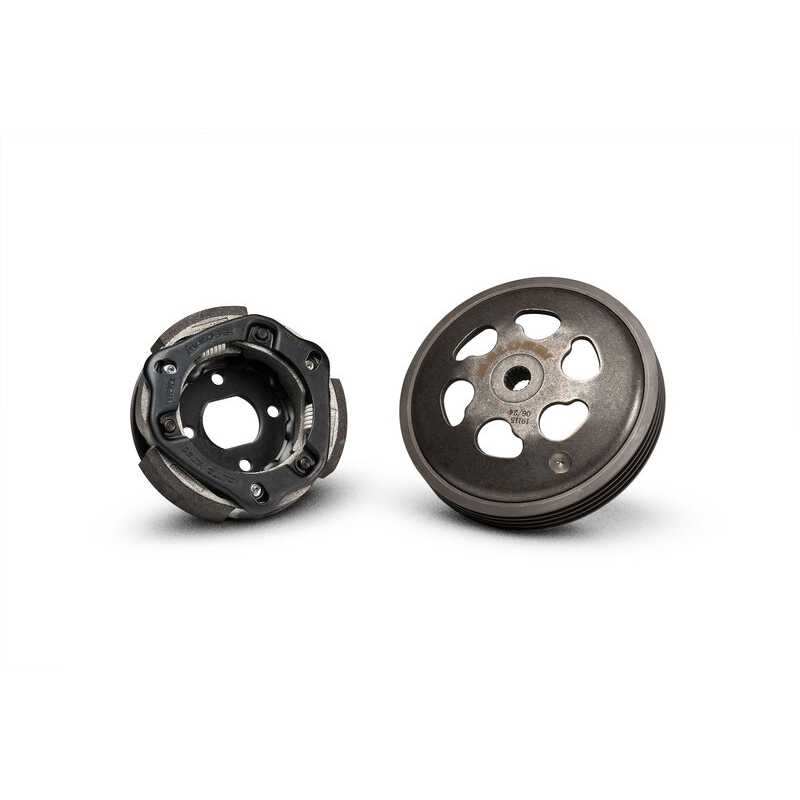

Embrague y campana MALOSSI Delta ø 107 mm

SISTEMA DELTA Sistema de embrague centrífugo RACING con campana de embrague para scooters El sistema incluye: - Embrague ajustable patentado (delta clutch). - Además, una campana de embrague reforzada para evitar defectos (wing clutch bell) con aletas de enfriamiento, equilibrado dinámicamente, desarrollado para competición y uso deportivo. Delta clutch El Delta clutch fue desarrollado para scooters de competición y rápidamente se convirtió en el producto de referencia en su campo. La simplicidad del sistema permite ajustar rápidamente la tensión del muelle a las fuerzas centrífugas y también ofrece la opción de intercambiar muelles con diferentes tensiones (valor K). El sistema completo está patentado para prevenir intentos de copia y falsificación. El Delta Clutch se ha establecido como un producto estándar entre muchos profesionales experimentados en la optimización de motores y los hechos hablan por sí mismos: el Delta Clutch es utilizado por todos los equipos de carreras y numerosos pilotos de competición, y las cifras de ventas están en constante aumento. Wing clutch bell Características técnicas - Campana de embrague forjada hecha de acero Fe DC04 estampado en frío; - Estrías de acero al carbono mecanizadas a partir de barra redonda y soldadas con TIG. - Superficie endurecida por nitruración. - Anillo de refuerzo con moleteado, fabricado en acero al carbono mecanizado, tratamiento de superficie bronceado, montado a presión. - 100% equilibrado dinámicamente. Debido a la alta demanda de estos dos productos, hemos decidido ofrecerlos en una unidad de entrega común. Esto permite a Malossi ofrecer a sus clientes dos productos de calidad a un precio más bajo. Productos destinados exclusivamente a la competición en los lugares designados para este propósito de acuerdo con las disposiciones de las autoridades deportivas relevantes. No aceptamos ninguna responsabilidad por el uso indebido. ```

DELTA SYSTEM

centrifugal clutch system with clutch bell for scooters RACING

The system includes the famous:

• patented adjustable clutch ( delta clutch ).
• In addition, a clutch bell that is reinforced to avoid defects ( wing clutch bell ) with cooling fins, dynamically balanced, developed for competition and sporting use.

Delta clutch

The Delta clutch was developed for competition scooters and quickly became the product benchmark in its field and a key to more power.

The simplicity of the system allows for a quick adjustment of the spring stiffness to the centrifugal forces and also offers the option of exchanging springs with different spring stiffnesses (K-value).

The corresponding spring stiffnesses (K values) are listed in the Malossi catalog. In addition, this system offers an adjustment of the position of the small mass. This influences the pressure between the friction material and the clutch bell. The small mass can also be exchanged with other masses/clutch weights of different weights.

The entire system is patented to prevent brazen copying and counterfeiting attempts.

The Delta Clutch has become established as a standard product with many experienced tuning professionals and the facts speak for themselves: the Delta Clutch is used by all racing teams and countless competition pilots, and sales figures are constantly increasing.

As with all other products, Malossi continuously tests the Delta coupling in use. This has allowed the coupling to be successively optimized through small but crucial updates. This has enabled the Delta coupling to defend its leading market position. We are very proud that our Malossi couplings are asbestos-free. A great deal of research has been invested in achieving the current quality standard in terms of reliability and friction material. We can now confirm with great certainty that we have the exclusive formula for developing a material that is resistant to high temperatures and does not change its friction coefficient even after long-term use.

Wing clutch bell

Technical Details

• Forged clutch bell made of Fe DC04 deep-drawn steel;
• Carbon steel splines machined from round bar and TIG welded.
• Surface nitride hardened.
• Knurled reinforcing ring, made of milled carbon steel, bronzed surface treatment, press-fitted.
• 100% dynamically balanced.

Due to the high demand for these two products, we have decided to offer them in a common delivery unit.

This allows Malossi to offer its customers two quality products at a lower price.

Products intended solely for competition in the places designated for this purpose and in accordance with the provisions of the relevant sports authorities. We do not accept any liability for improper use.
