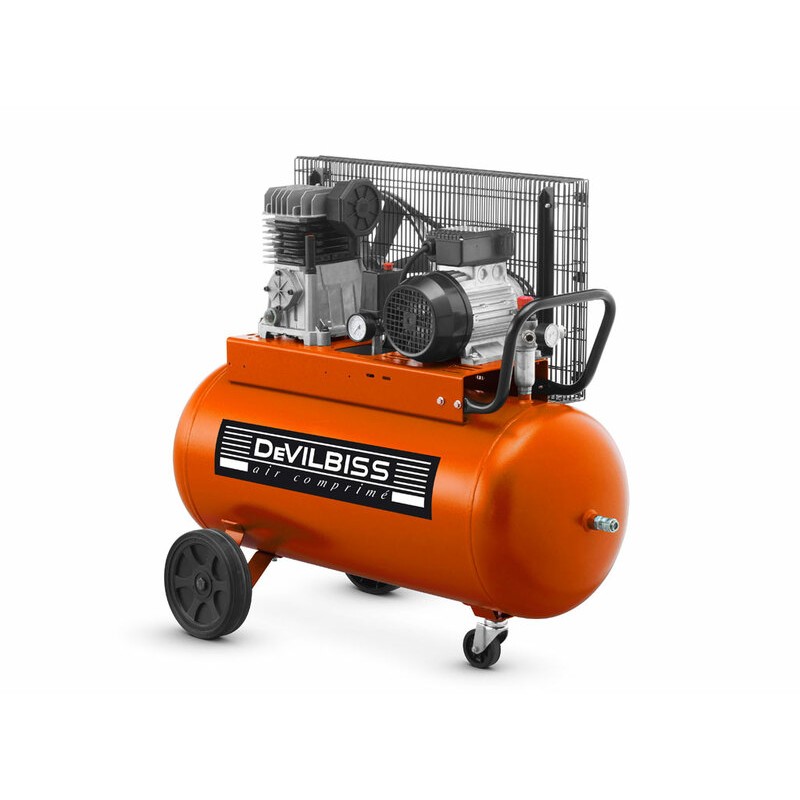

DEVILBISS Compressor 3HP / 90L

Piston compressor 3HP / 90L single-stage with cast iron cylinder and belt driven.

Technical details:

• Free air delivered: 20,2m3/h
• Air pressure: 10bars
• Engine power: 3HP / 2,2KW
• Input current: 230V single phase / 50Hz
• Tank capacity: 90L
• Speed: 1350 rpm/min
• Air outlet: 1/4" F
• Dimensions L x w x H (mm): 1070 x 390 x 800
• Weight: 69Kg

Caution:

To protect your pneumatic system, you are strongly advised to use an air treatment system and an automatic capacitor purge (ref. 892 887)
